Eigenschaften

Technische Daten

Plate Type: Screen Printer

Applicable Industries: ELECTRONIC INDUSTRY

Condition: New

Usage: SMT screen printing machine for PCB production

Automatic Grade: Automatic

Color & Page: solder paste printer

Voltage: AC:220Â±10%

Dimensions(L*W*H): 1140(L)X1360(W)X1560(H)mm

Weight: 1000KG

Zertifizierung: ce

Warranty: 1 Year

After-sales Service Provided: Field installation, commissioning and training, Field maintenance and repair service, Video technical support

Key Selling Points: Automatic

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Warranty of core components: 3 months

Core Components: PLC, Other

keywords: GKG G5 smt Screen Printing Machine

PCB Min size: 50X50mm

PCB Max Size: 400X340mm

PCB Thickness: 0.4~6mm

Print head: Two independent motorised printheads

Squeegee Speed: 6~200mm/sec

Squeegee Angle: 60Â°(Standard )/55Â°/45Â°

Squeegee Pressure: 0~15Kg

Control Method: PC Control

Repeated accuracy: Â±0.01mm

After Warranty Service: Video technical support, Online support

Local ServiceÂ Location: Mexico, Thailand

Showroom Location: Mexico, Thailand

Marketing Type: New Product

Grundinformation

Zertifizierung: ce

Zahlung und Versand AGB

Packaging Details: GKG G5 SMT printing machine solder paste screen printer for led lighting PCB production line package: Standard export box or strong wooden package, can be discussed

Supply Ability: 50 Piece/Pieces per Month

Produkt-Beschreibung

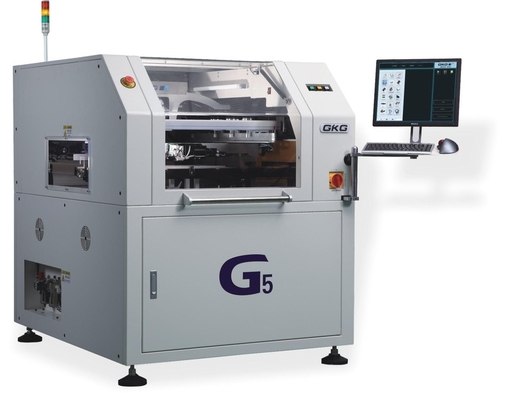

GKG G5 SMT printing machine solder paste screen printer for led lighting PCB production line

Product Description

GKG G5 solder paste printing machine Specifications:

Mask	Min size (mm)	370*370
	Max size (mm)	737*737
	Mask clamping	Air cylinder
PCB	Min size(L*W mm)	50*50
	Max size (L*W mm)	400*340
	Thickness	0.4~6
	PCB clamping type	Top flatten (manual upper edge) / flexible edge clip
	PCB support	Magnetic thimble / equal height block / manual adjustment.
Conveyor	Conveyor stage	One piece guide rail
Conveyor	Transport direction	Left -right / right -left
Squeegee	Squeegee type	Squeegee / steel scraper (angle 45 / 55 / 60), user defined
	Length	L=280, user defined
	Speed	10~200mm/sec
Accuracy	Repeated accuracy	±0.01mm
Accuracy	Printing accuracy	±0.025mm
Printing time	Cycle time (Excluding printing and Cleaning time )	<8 sec
Others	Operation system	Windows XP /Win7
	Power supply	AC:220±10%, 50/60HZ,2.5KW
	Weight	1000Kg
	Single size (LWH)	115813621463
2D inspection	FOV camera	8*6mm
	Inspection	Little tin or tin and even missing
	Inspection size	0.3mm above
	Max . teaching windows	You can display up to 500 pictures at most

Picture show

Our Services

1. We’ll have a good check and a test before shipping out.

2. We provide you the friendly English User manual or the operating videos for free;

3. 24 hours technical support by email or Skype or Trade Manager or Calling.

4. 1-year warranty for a new machine, 3-month warranty for the old machine.

5. Engineers available to service machinery overseas.

Packaging & Shipping

Packing method:

Vacuum package and Strong wooden case for heavy and large equipment;

Shipping way:

By sea, for large package and quantity;

FAQ

1) This is the first time I use this kind of machine, is it easy to operate?

There is english manual or guide video that show you how to use a machine.

If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

2) If machine have any problem after I receive it, how can I do ?

Free parts send to you in machine warranty period.

If the part is less than 0.5KG, we pay the postage.

If it exceeds 0.5KG, you need to pay the postage.

3) How can I buy this machine from you? ( Very easy and flexible !)

A. Consult us about this product on line or by e-mail.

B. Negotiate and confirm the final price , shipping , payment methods and other terms.

C. Send you the proforma invoice and confirm your order.

D. Make the payment according to the method put on proforma invoice.

E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

F.Send your order by air or by sea.
